Photo Gallery

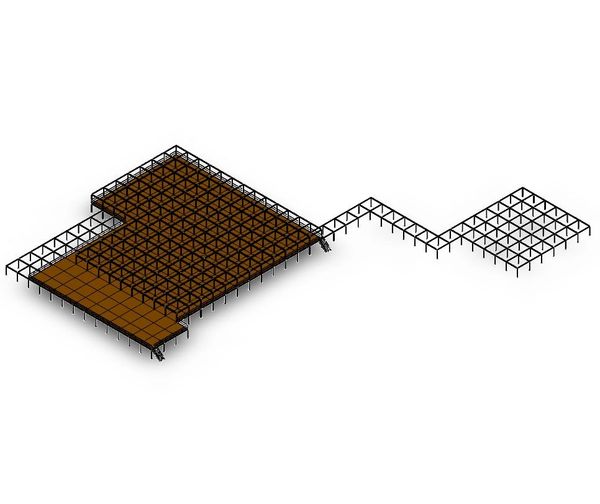

Work Platform 62,000 sq ft for Conveyor Support. Design IAW AISC Steel Construction Manual, ANSI MH28.3, OSHA 29 CFR 1910 & 1926, and ASCE 7.

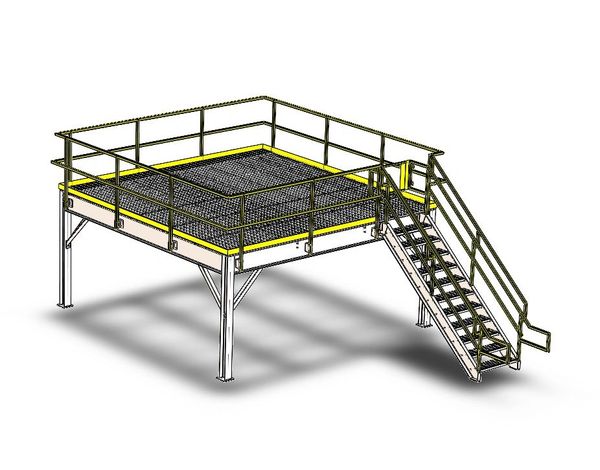

Work Platform 193.5"x193.5"x90". Live Load = 140 psf. Design IAW AISC Steel Construction Manual, ANSI MH28.3, OSHA 29 CFR 1910 & 1926, and ASCE 7.
50 Ton Lifter x 50'. Design IAW ASME BTH-1, ASME B30.20, and AISC Steel Construction Manual.
Shipping Fixture. 50'x16'x3'. 25 Ton Capacity for Lashing and Truck Shipment. Design IAW AISC ASD and IMO CTU.

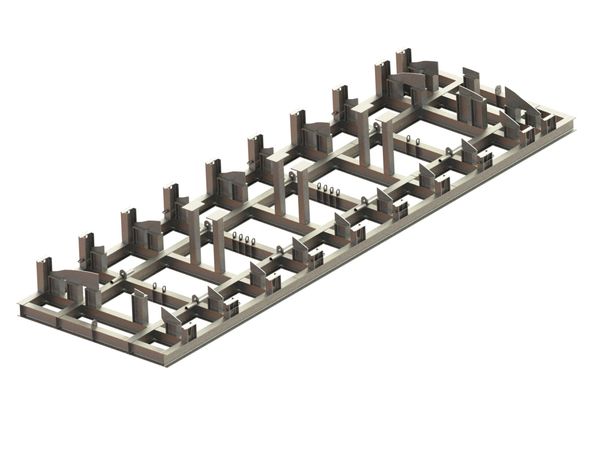

Welding and Rigging Fixture. 50'x16'x7'. 20 Ton Capacity for 180 Degree Flip. Design IAW AISC ASD.
Heat Exchanger (BEM) designed in accordance with ASME Section VIII Division 1 and TEMA
75 Yard Hopper - Designed IAW AISC ASD
Pressure Vessel Designed IAW ASME Section VIII Division 1

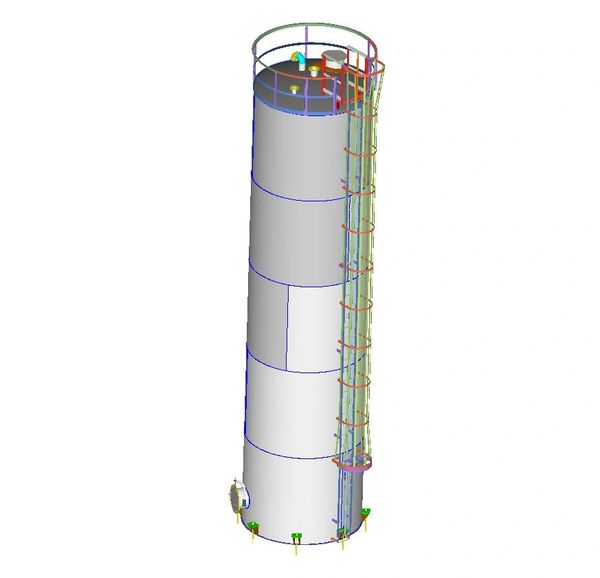

Tank 10' Diameter x 40' Tall Designed in accordance with API 650.

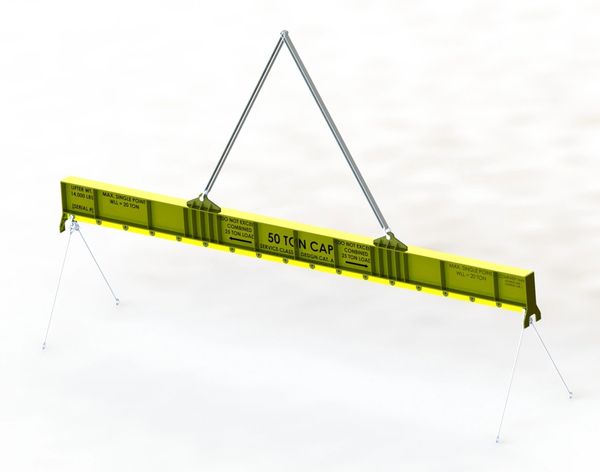

25 Ton Capacity 20'-40' Adjustable Spreader Beam. Design IAW ASME BTH-1 Design Category B Service 1 and AISC ASD.
Stair Tower 118'x18.5'x 7.5'
Design in accordance with AISC ASD, ASCE 7-16, and OSHA.

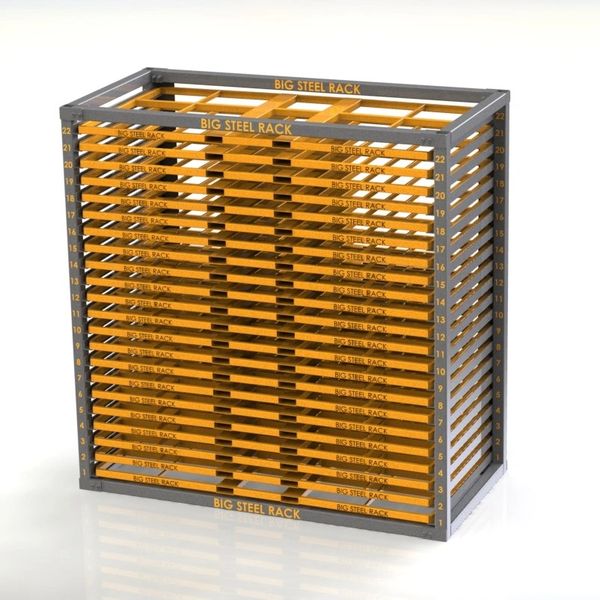

6'x12'x14' Rack 22 Pallets 5000 lbf/Pallet. Designed in accordance with ANSI MH16.1 and AISC ASD for Big Steel Rack.
6'x12' Pallet 5,000 lbf Capacity. Designed in accordance with ANSI MH16.1 and AISC ASD for Big Steel Rack.
2.25 Ton Monorail Crane designed in accordance with CMAA 74 and AISC Manual of Steel Construction ASD.
5 Ton Monorail Crane designed in accordance with CMAA 74 and AISC Manual of Steel Construction ASD.

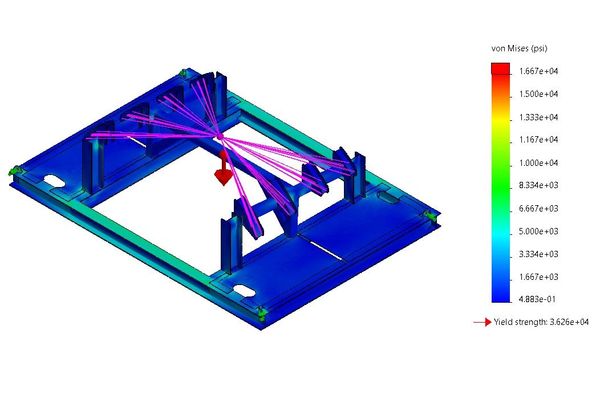

Shipping Fixture 4 Point Diagonal Lifting Stress Analysis via Static FEA. 9'x18'x3'.

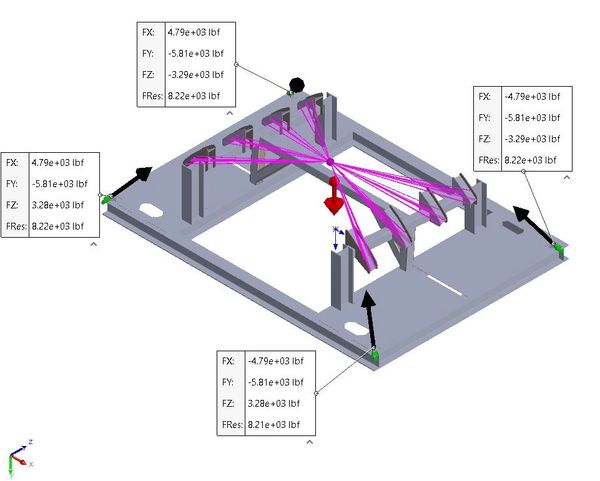

Shipping Fixture 4 Point Diagonal Lifting Load Reaction Load determination via Static FEA. 9'x18'x3'.
